“精、景、境” “conciseness, landscape, environment” 东沃(Dow group)集团有限公司上海总部办公室

13小时前

王善祥 资深设计师

上海市|上海城区 |建筑师

找Ta做项目 收藏设计师

坐落地点:上海市      面积:4100m2

设计:王善祥          参与设计:王善辉  龚双艳  李哲  张玺梁

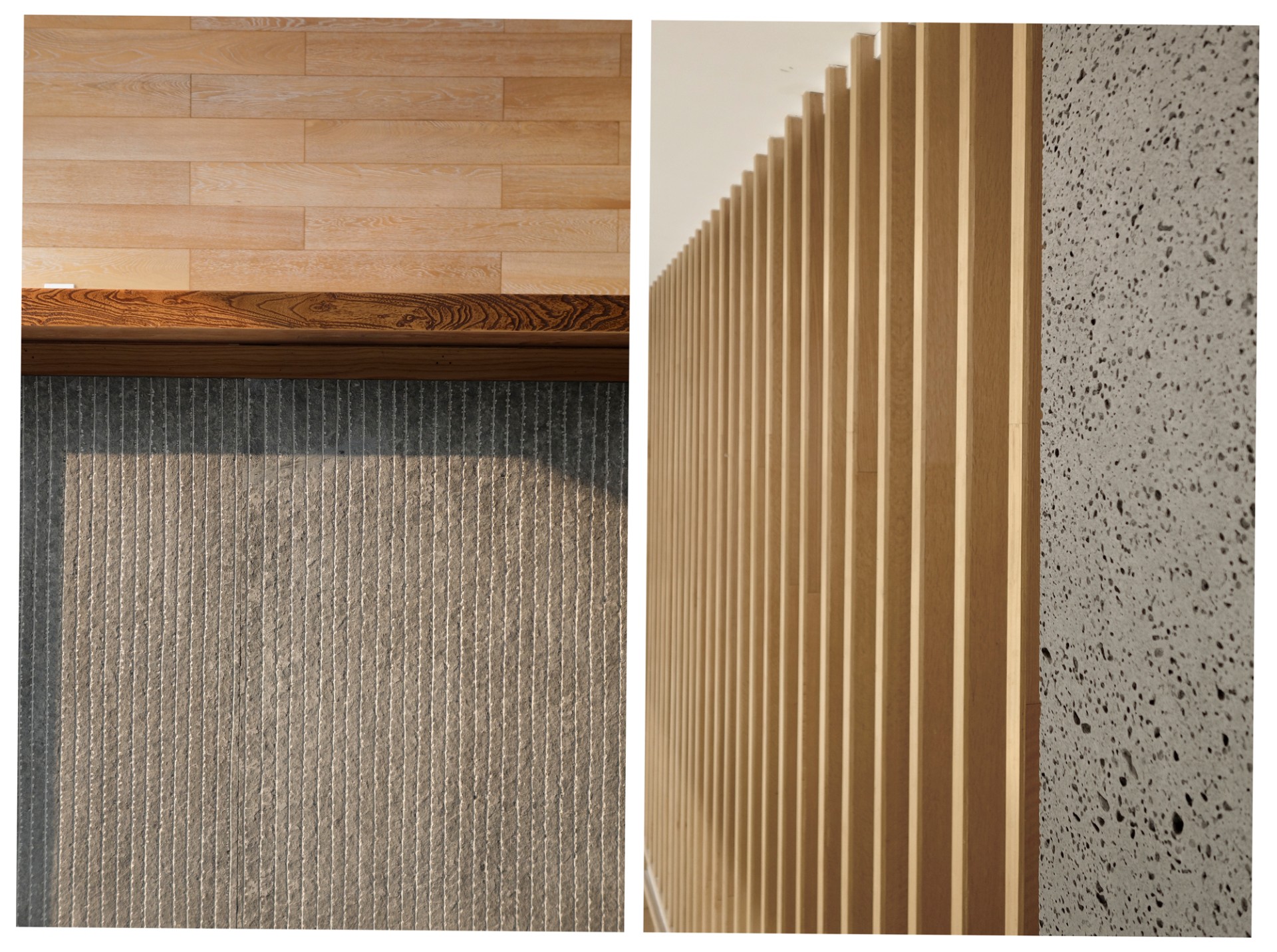

主要材质:乳胶漆、橡木、火山岩、复合地板、地毯、亚麻地材、镀钛不锈钢、麦秸板、水泥板、仿大理石瓷砖、透光软膜

摄影:胡文杰

设计时间:2012

竣工时间:2013

Project name: Offices of Dow group Limited Company in Shanghai

Location:Shanghai City  Total area:4100m2

General designer:Wang Shanxiang  Partner: Wang Shanhui, Gong Shuangyan, Li Zhe, Zhang Xiliang

Main materials: emulsion paint, oak, volcanics, composite floor, carpet, flax flooring, titanizing stainless steel, staw board, floor slab, imitation marble tile,translucent mantle.

Photographer: Hu Wenjie

Design date: 2012

Completion date :2013

知道东沃集团的人不多,但是2010年上海世博会期间热卖的世博护照却是家喻户晓,护照的发行即是由东沃集团做的代理。集团旗下共拥有景观设计、景观建设、文化传媒等子公司和部门,其中景观设计、景观建设是该公司的起家产业也是支柱产业。办公室位于一栋办公楼内的5个层面,分别是9、11、13、14、15层。

People didn't know much about the Dow group while Expo passport, on the top selling list in 2010 Shanghai World Expo was well-known to every family. Dow group issues the passport as an agency. Dow Group has many subsidiaries and divisions for landscape design, landscape construction, culture media. The landscape design, landscape construction is the company started industry as well as the pillar industry. Its office is located at an office building and has 5 floors, namely the ninth, eleventh, thirteenth, fourteenth and fifteenth floor.

     设计伊始,根据业主要求,新的办公室设计必须简洁、大气,同时要控制造价和施工时间。为此,设计师提出“精、景、境”三个字的设计概念。精:是指精炼、精简、精进,景:是指景致、景观、景象,境:是指环境、意境、境界。

At the beginning of the design, according to the requirements of the owner, the new office must be concise, atmospheric and at the same time, we must control the cost and construction time. Therefore, designers put forward the design concept, “conciseness, landscape, environment”. Conciseness refers to the precision and simplicity. Landscape refers to the scene and picture. Environment refers to the imagery environment, the artistic conception.

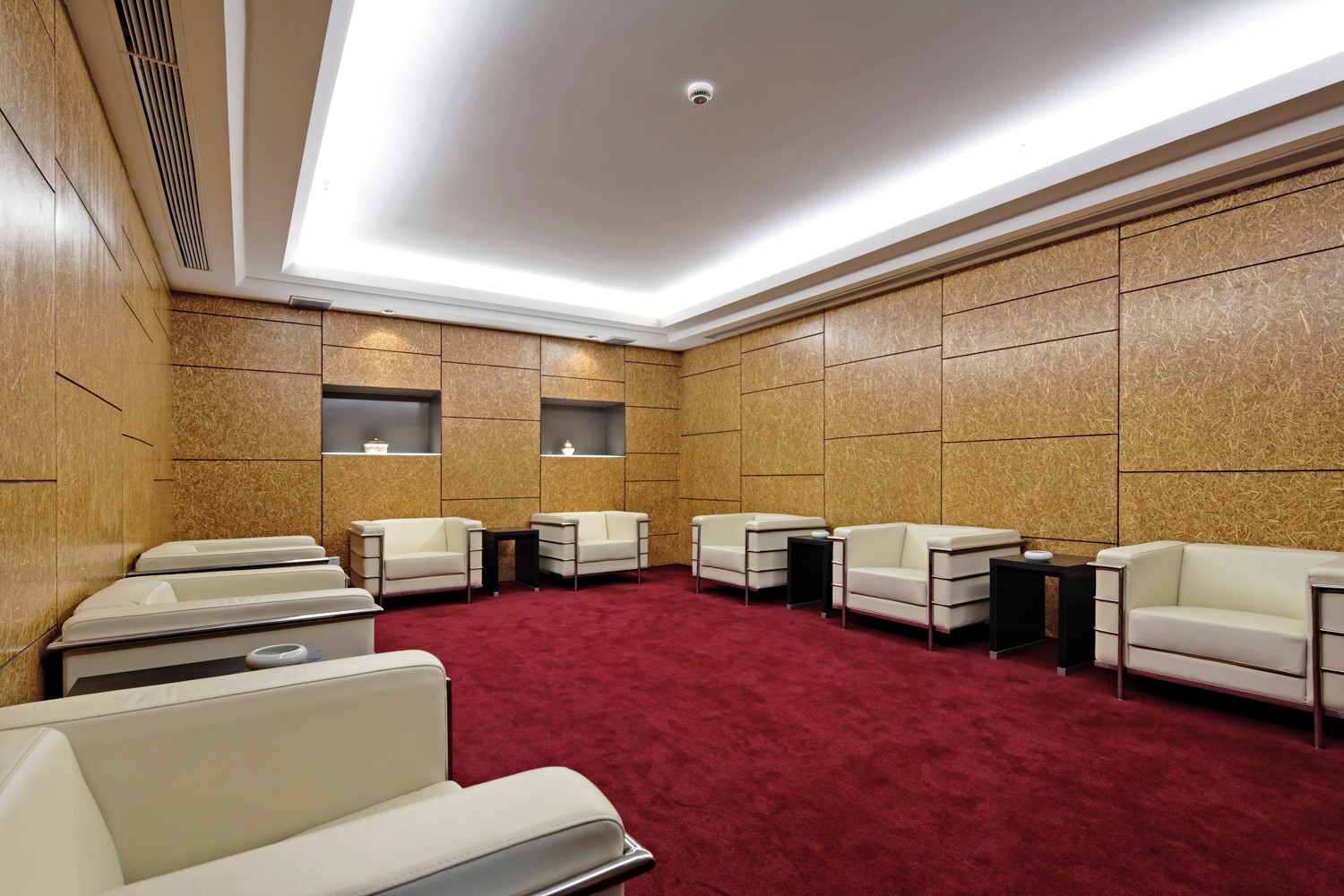

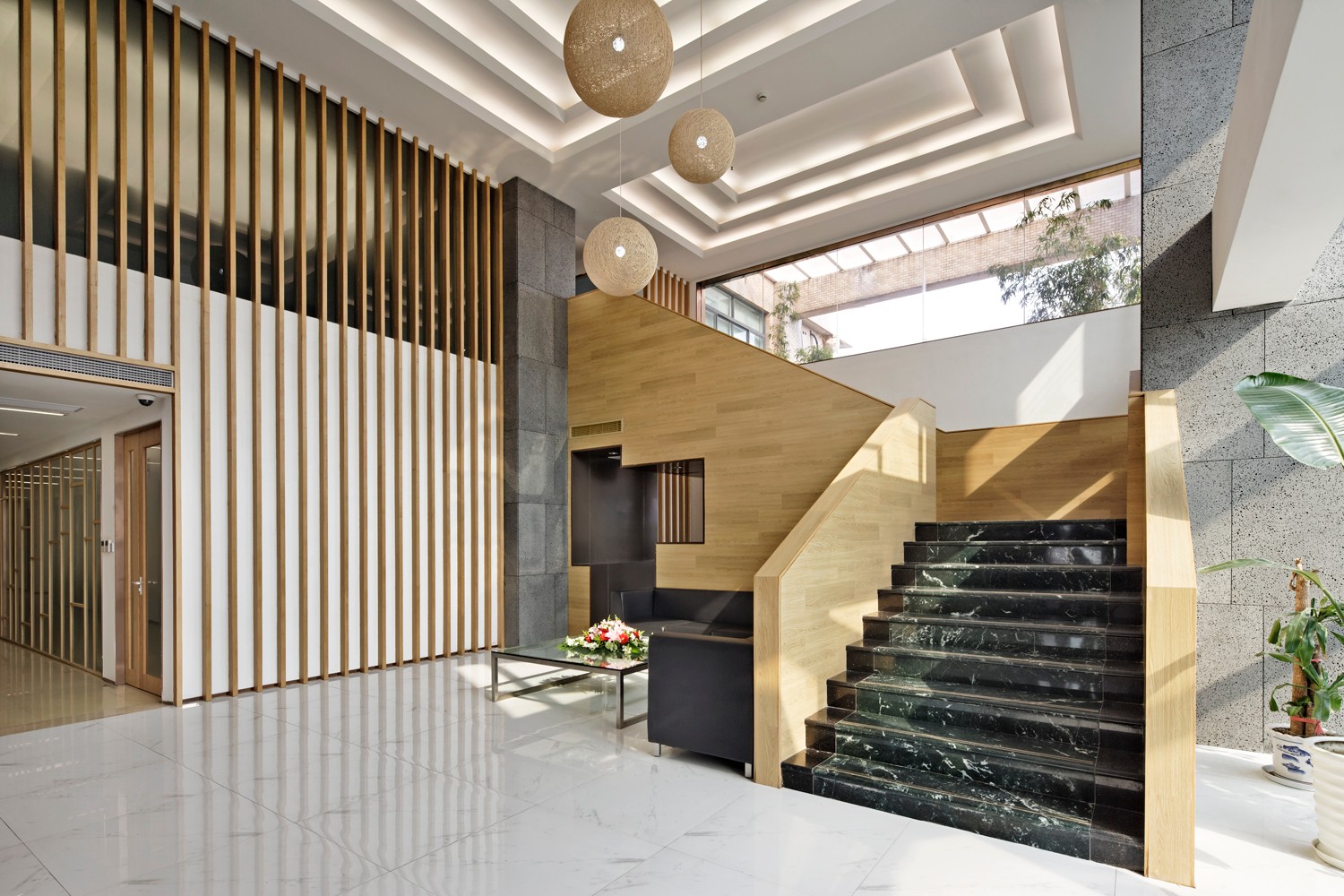

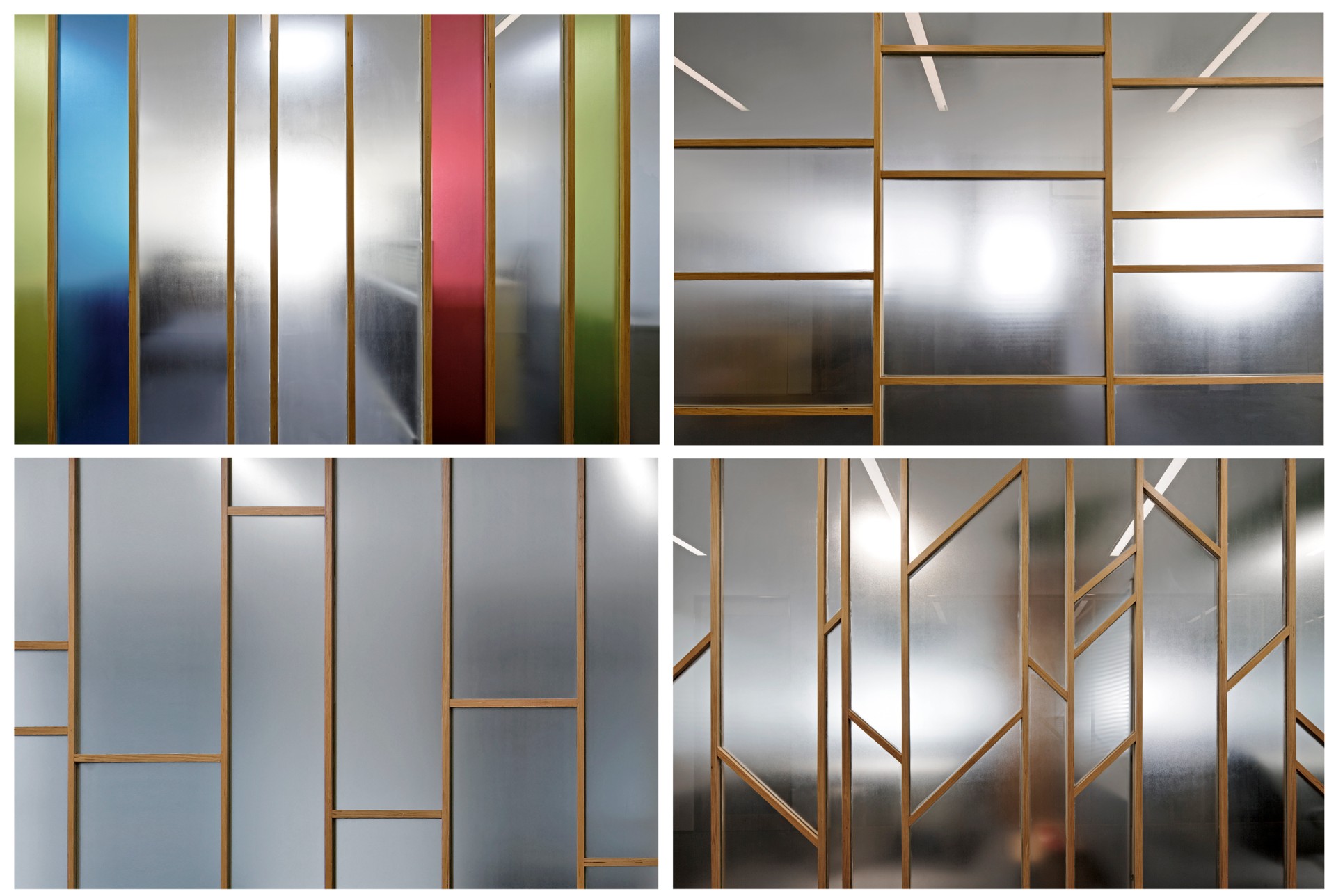

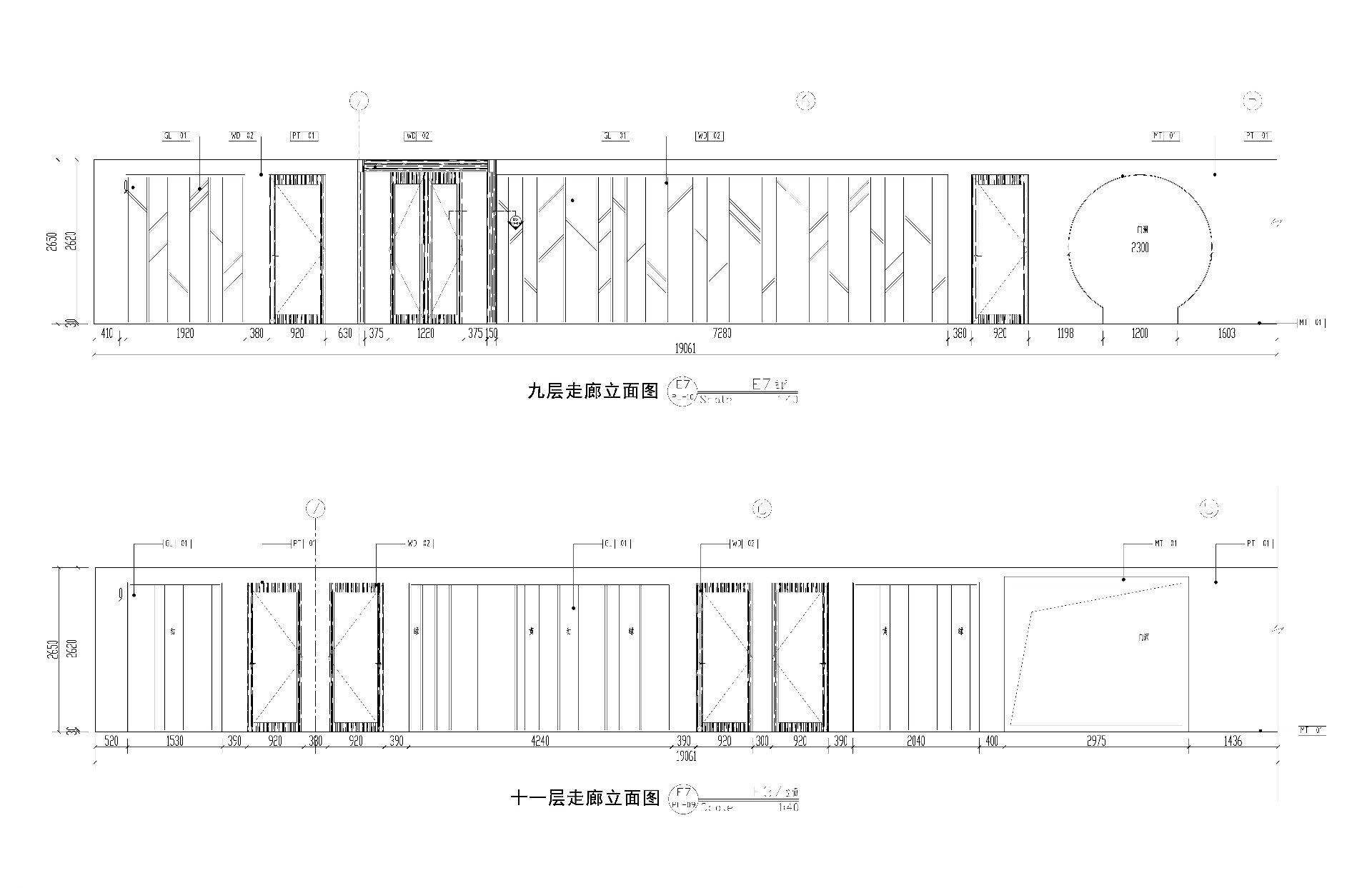

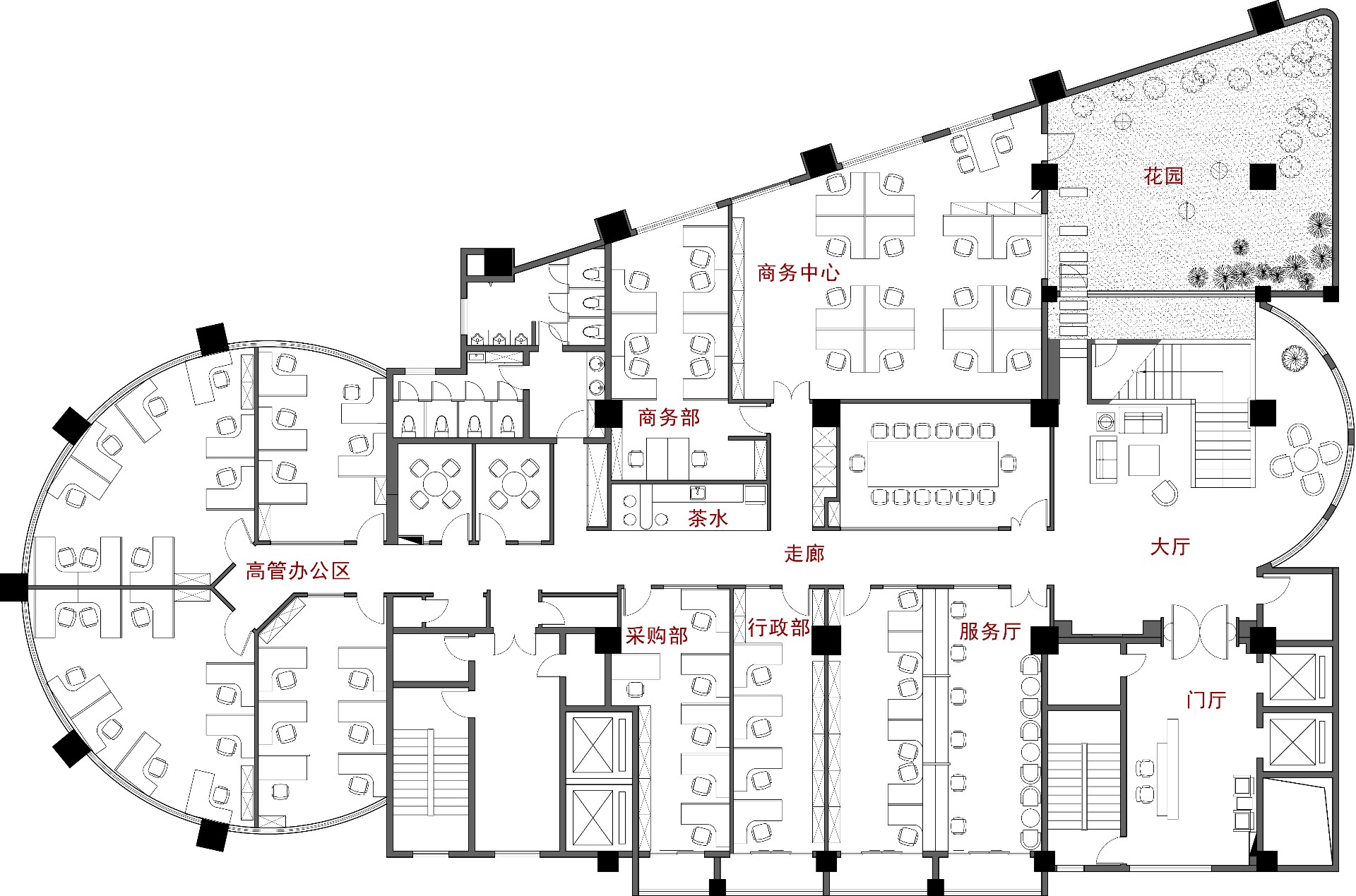

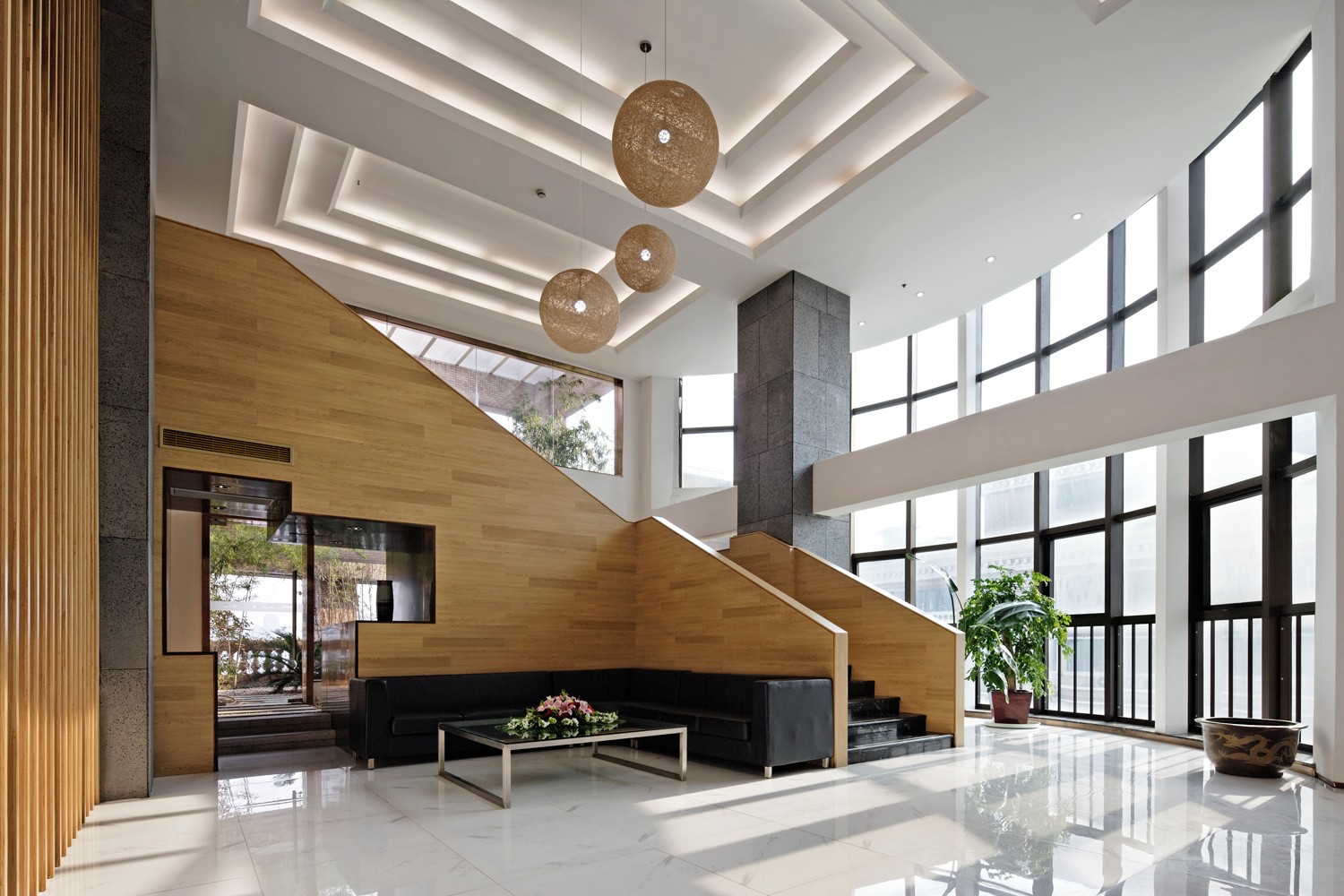

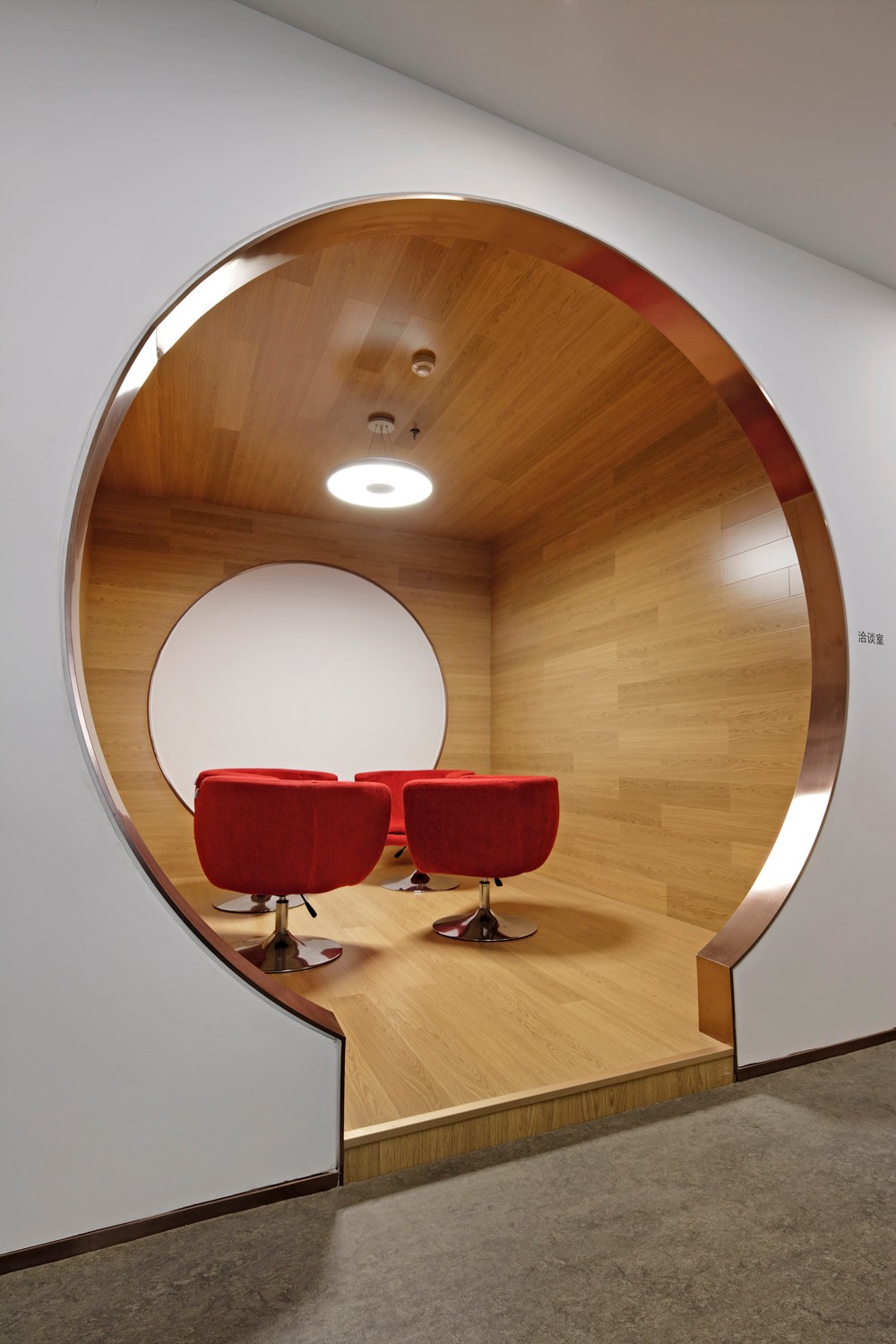

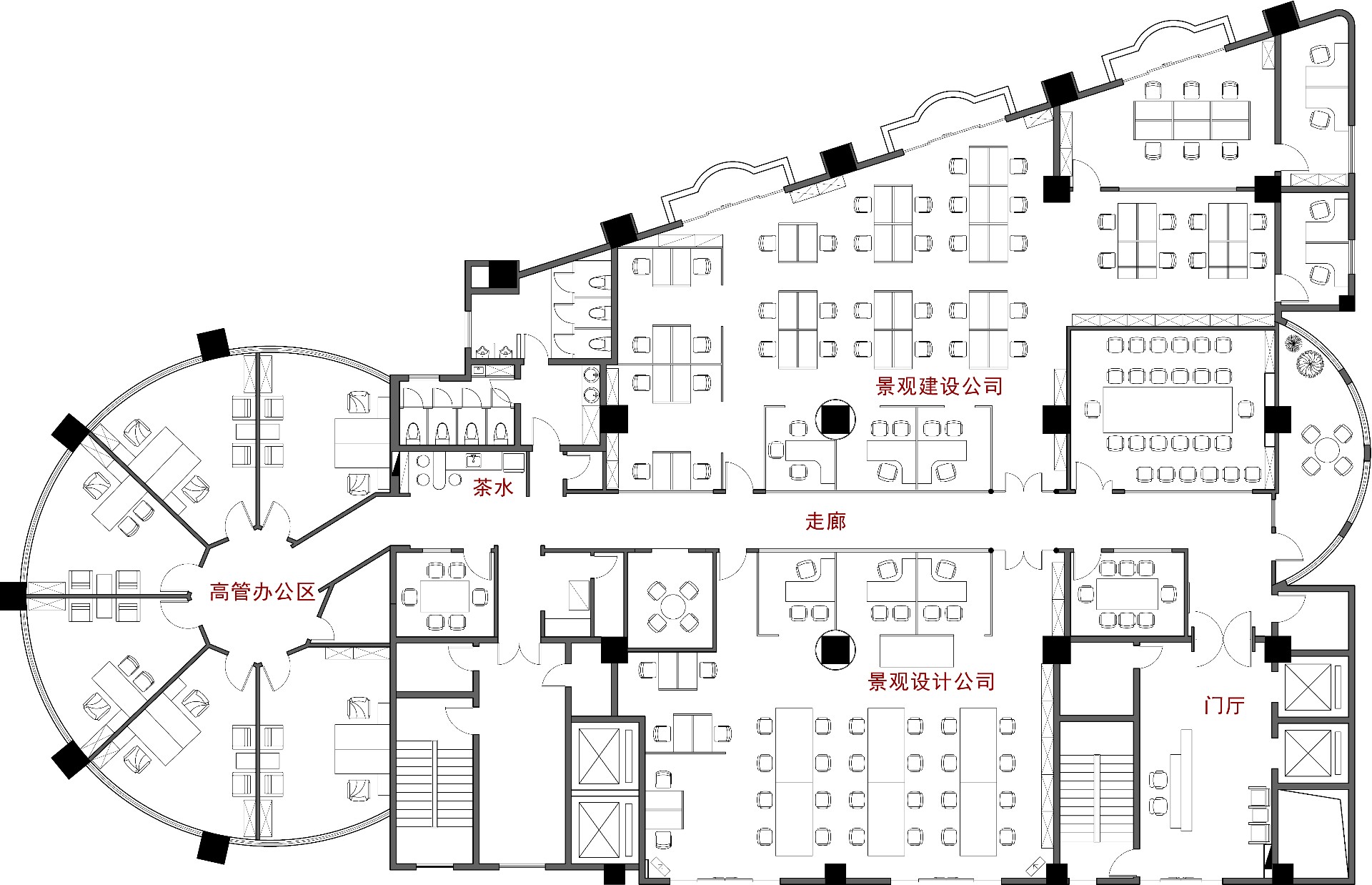

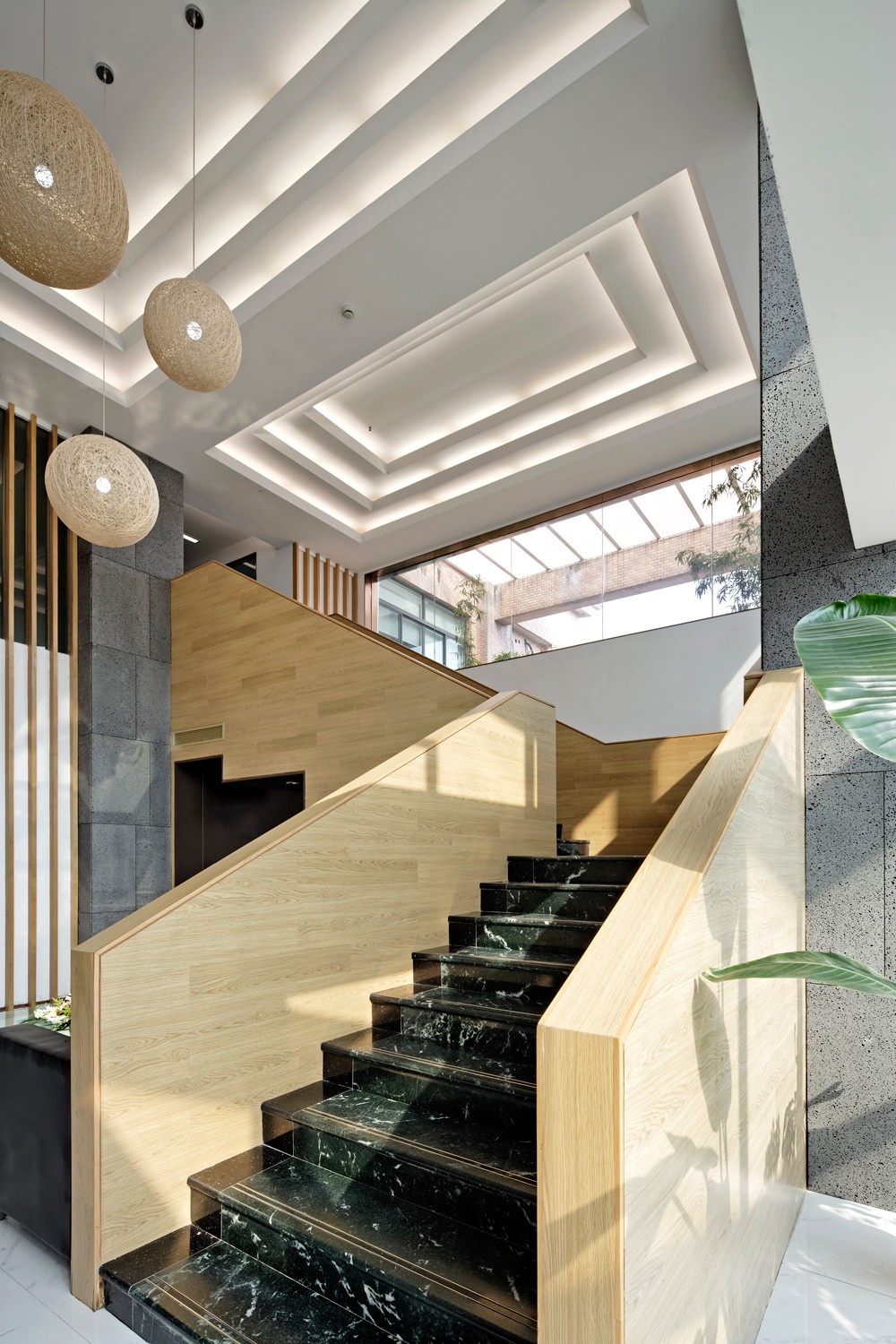

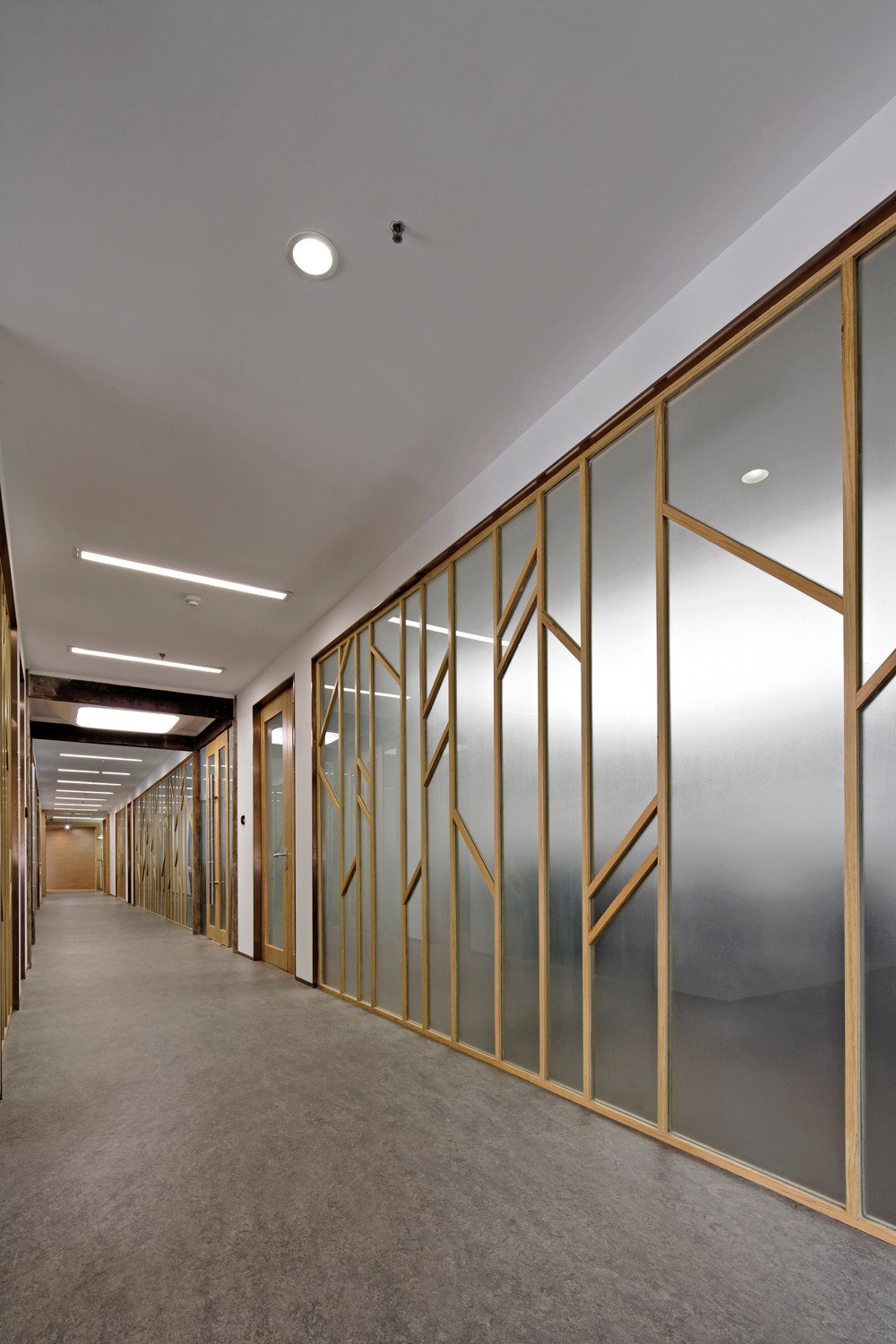

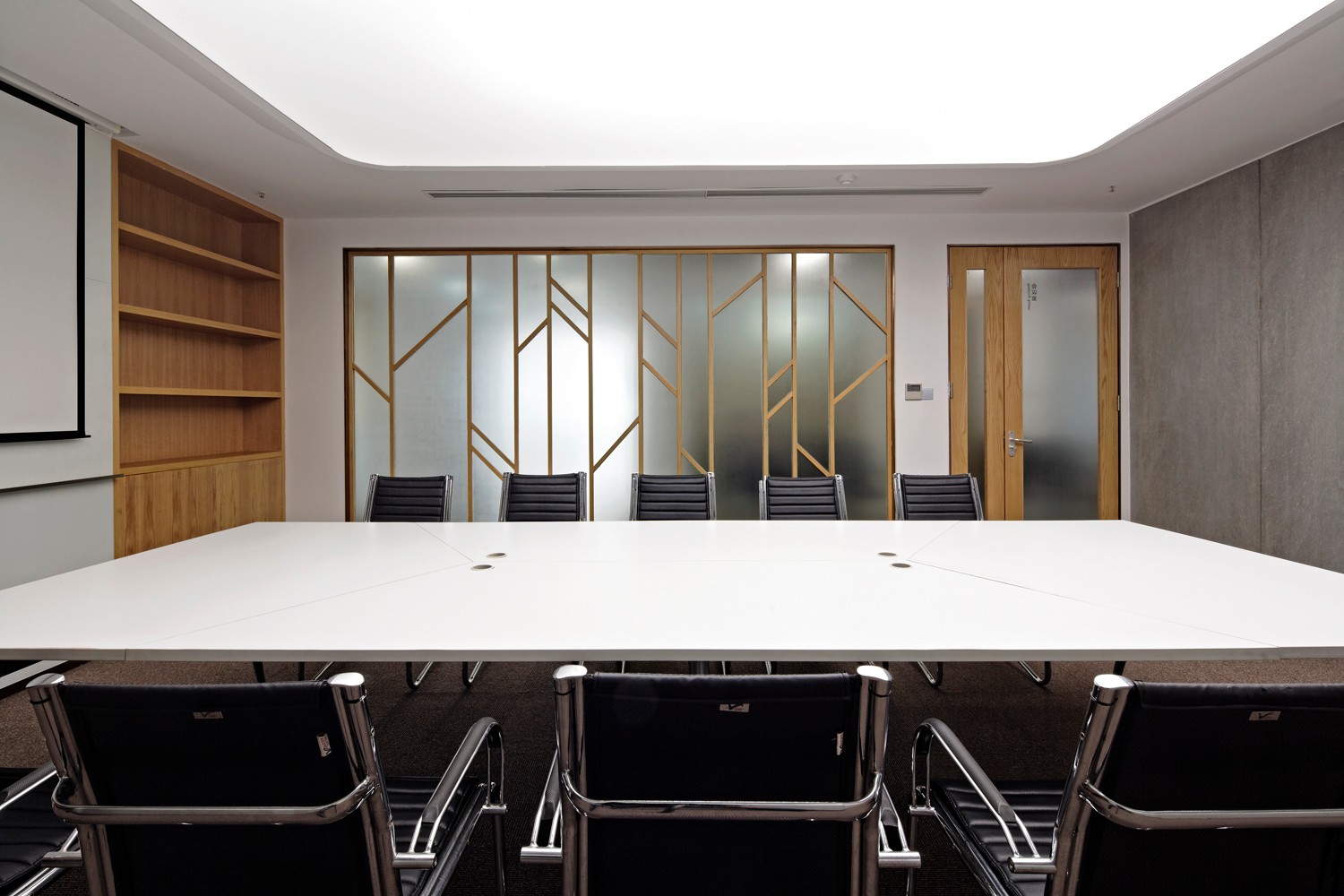

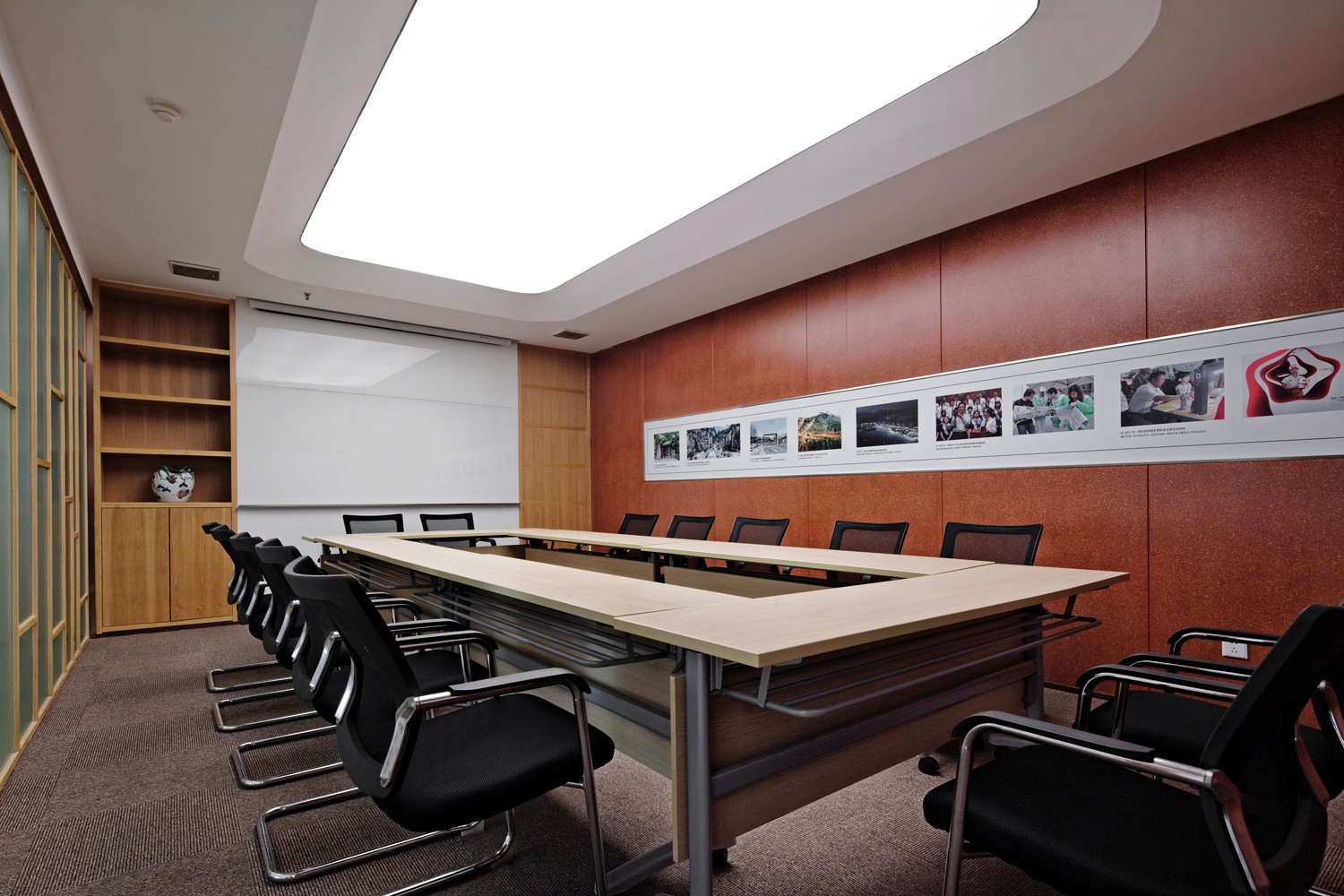

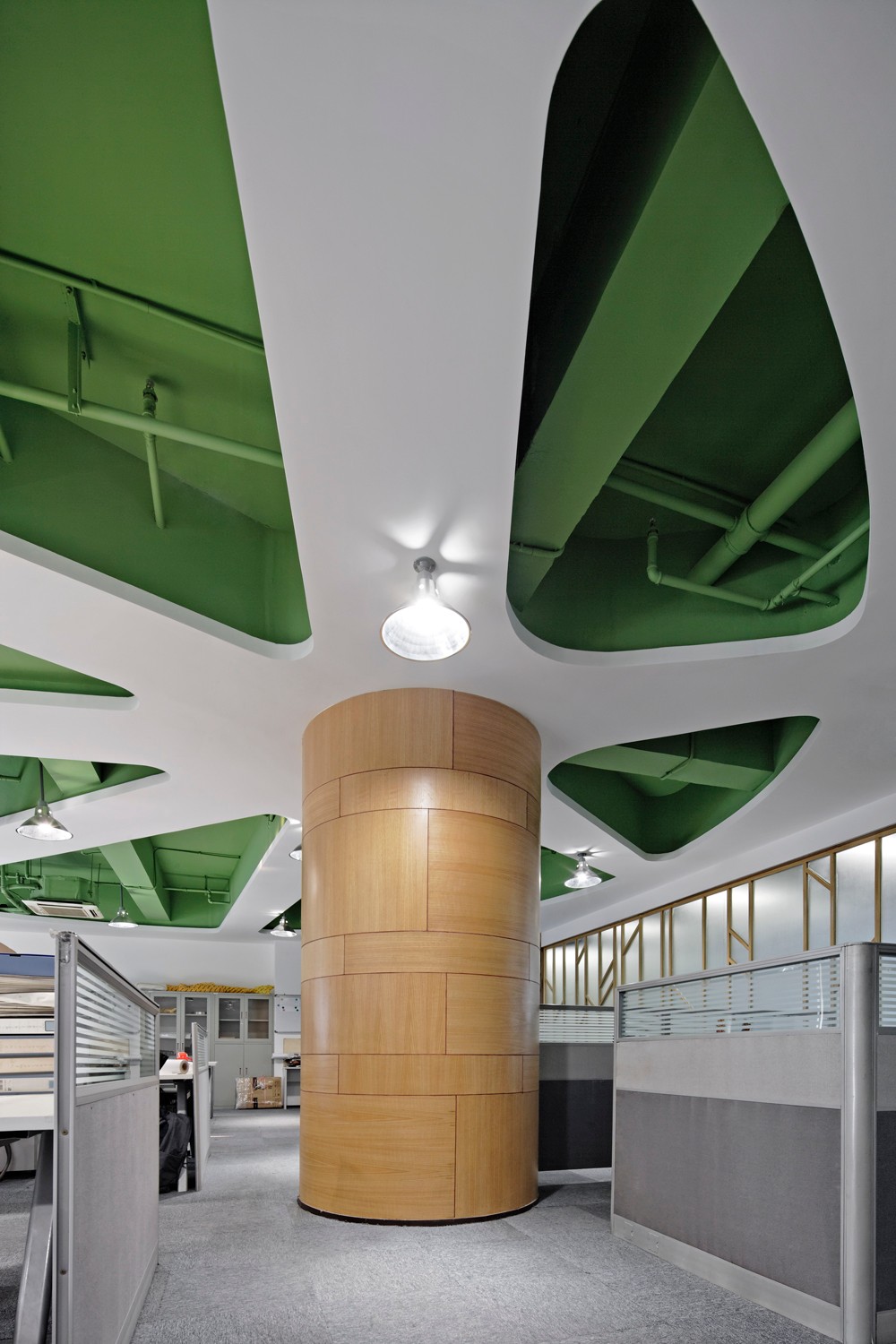

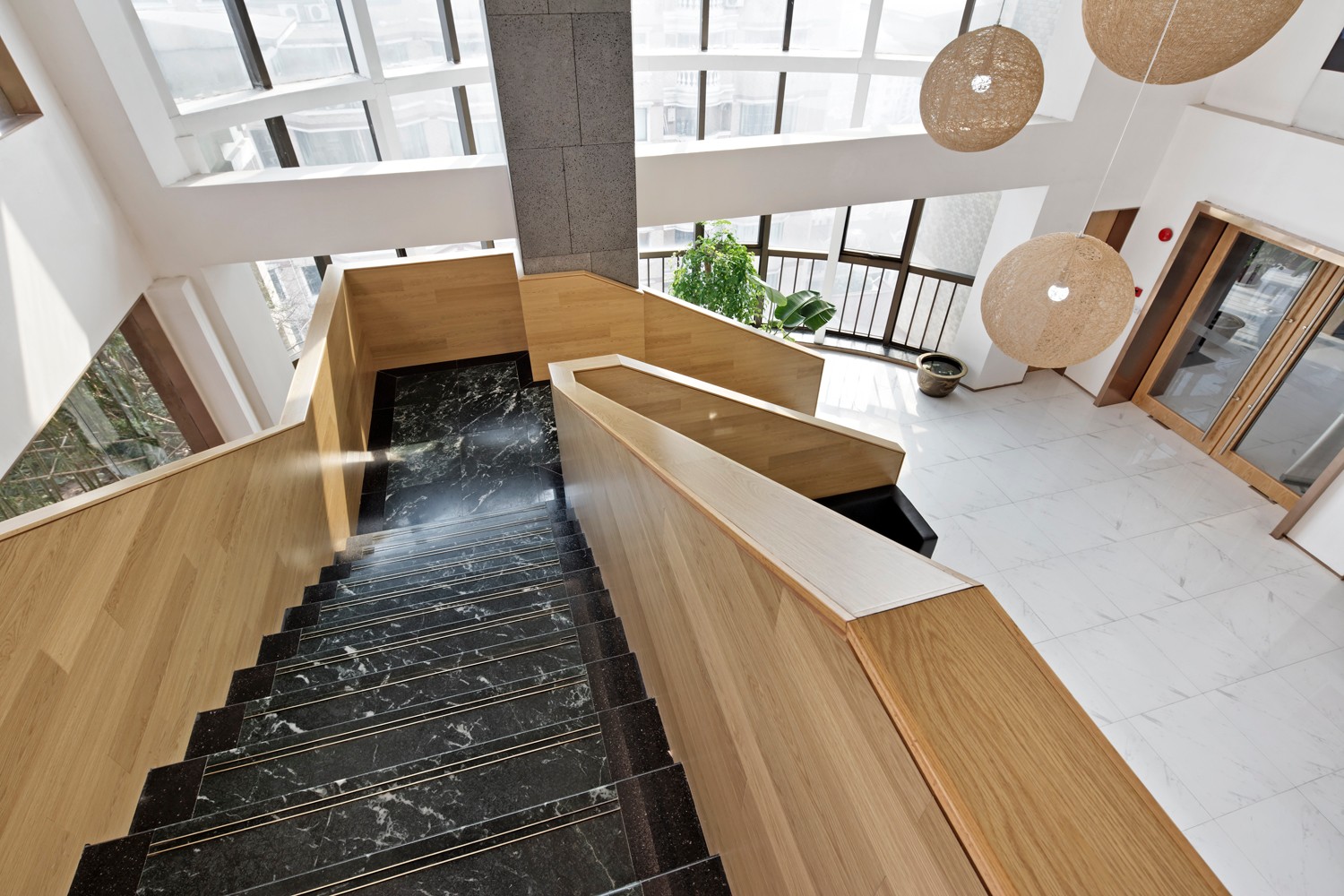

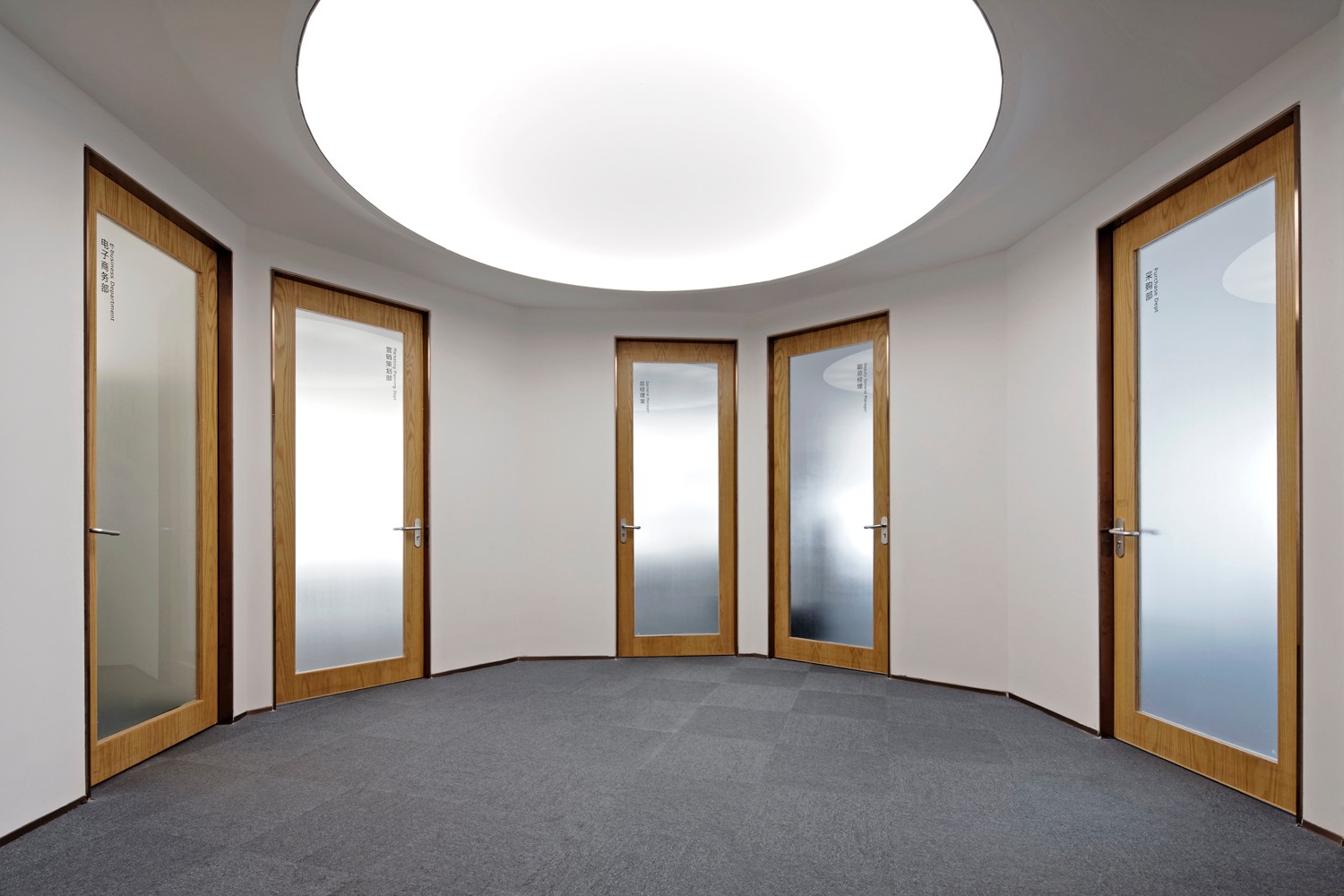

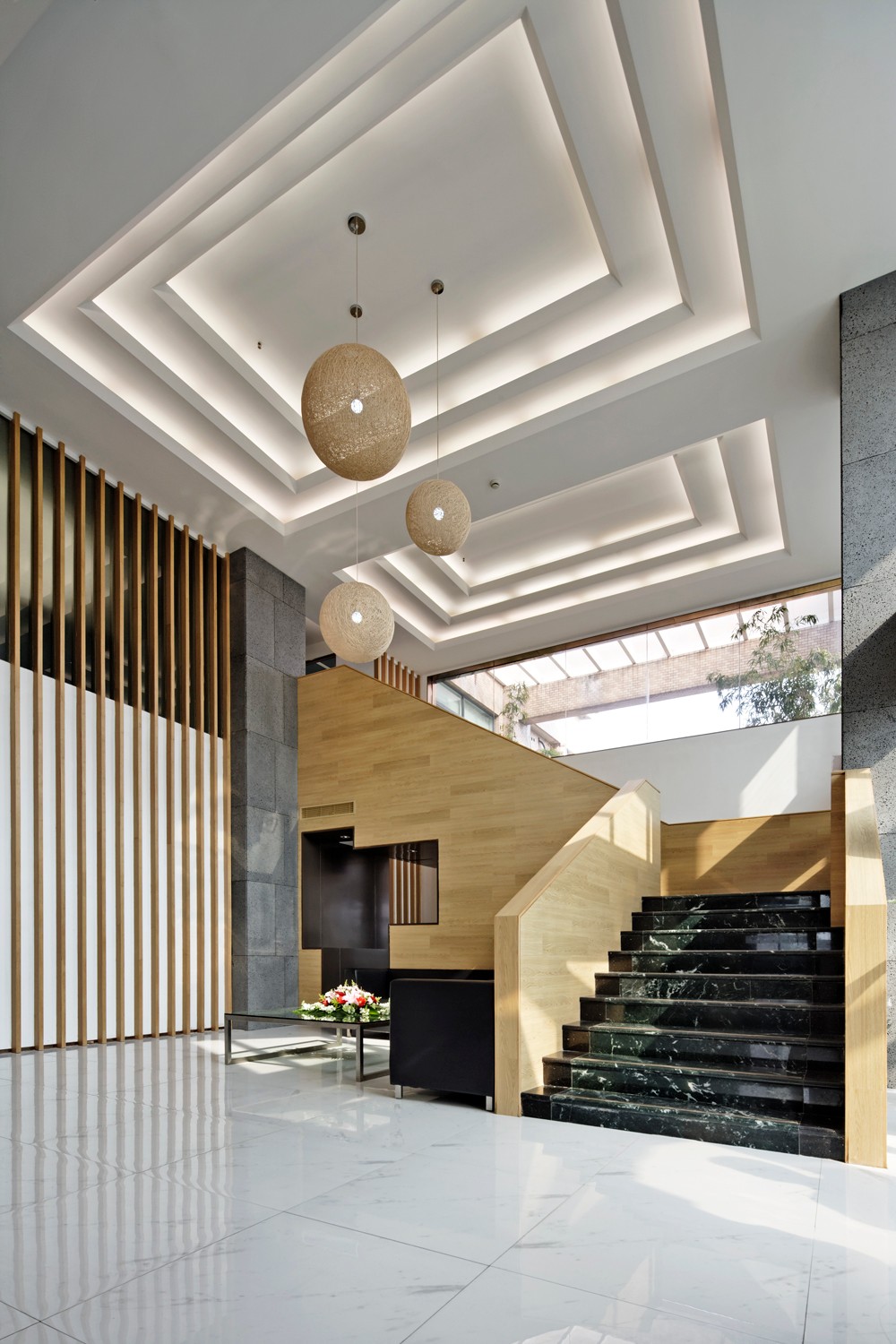

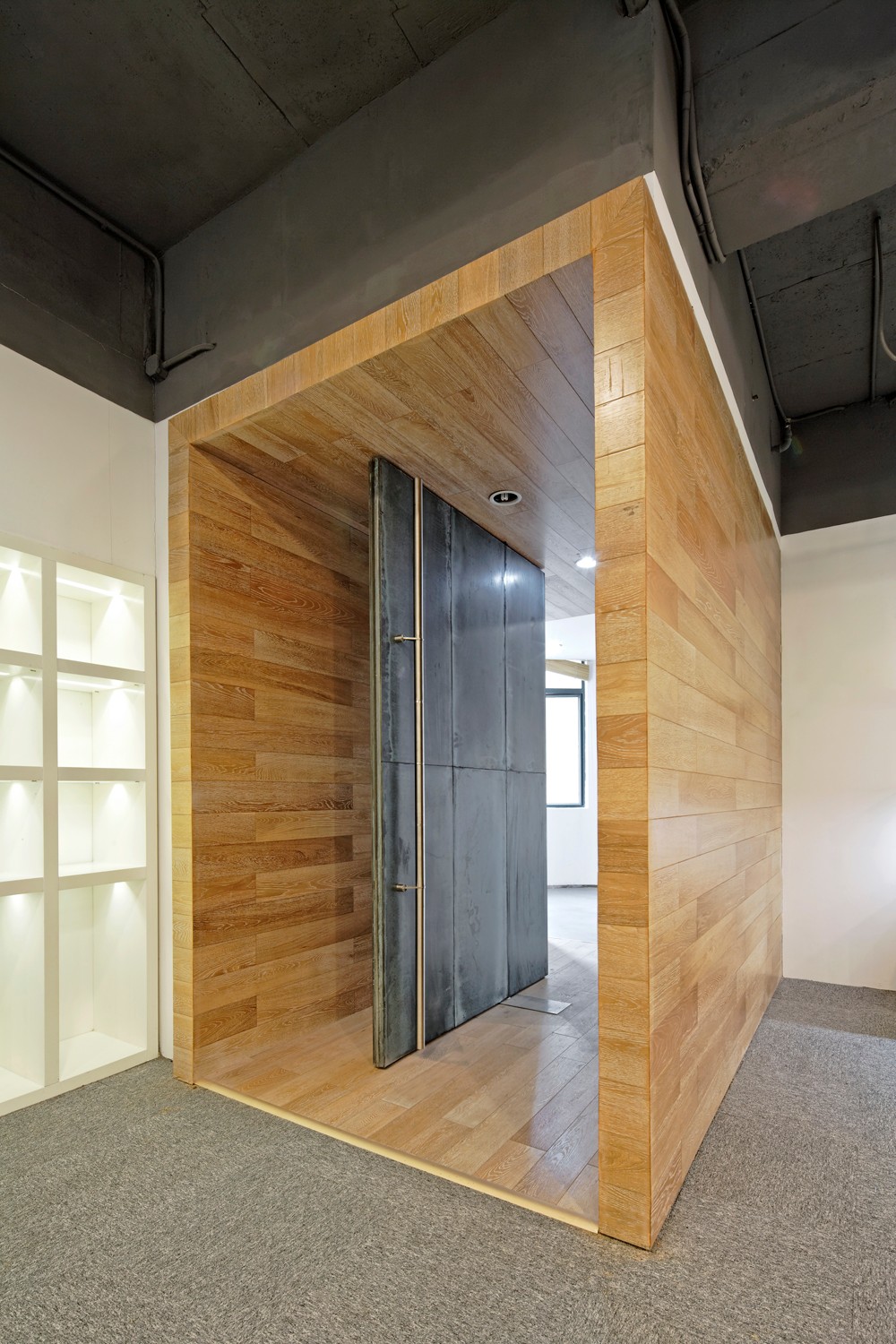

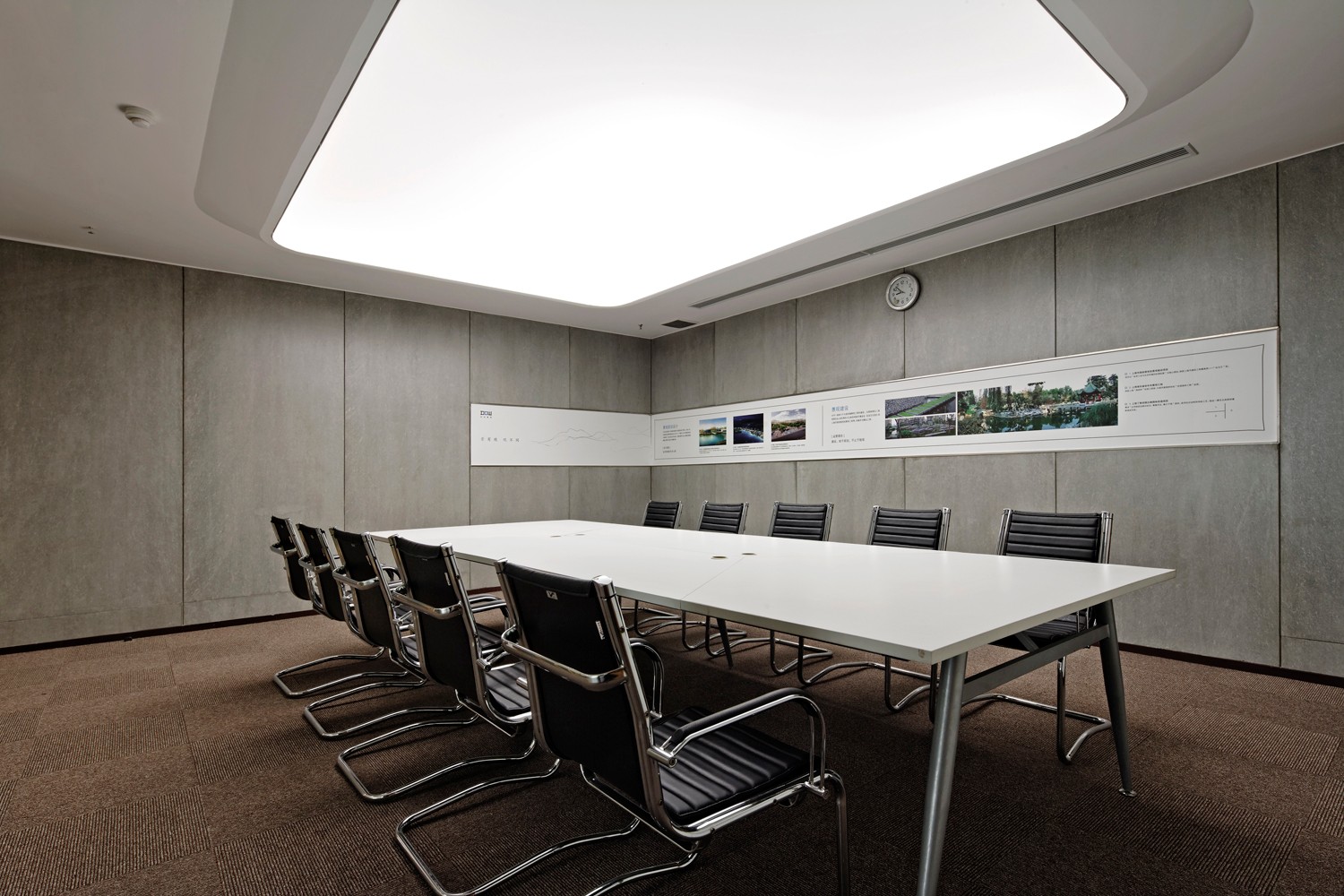

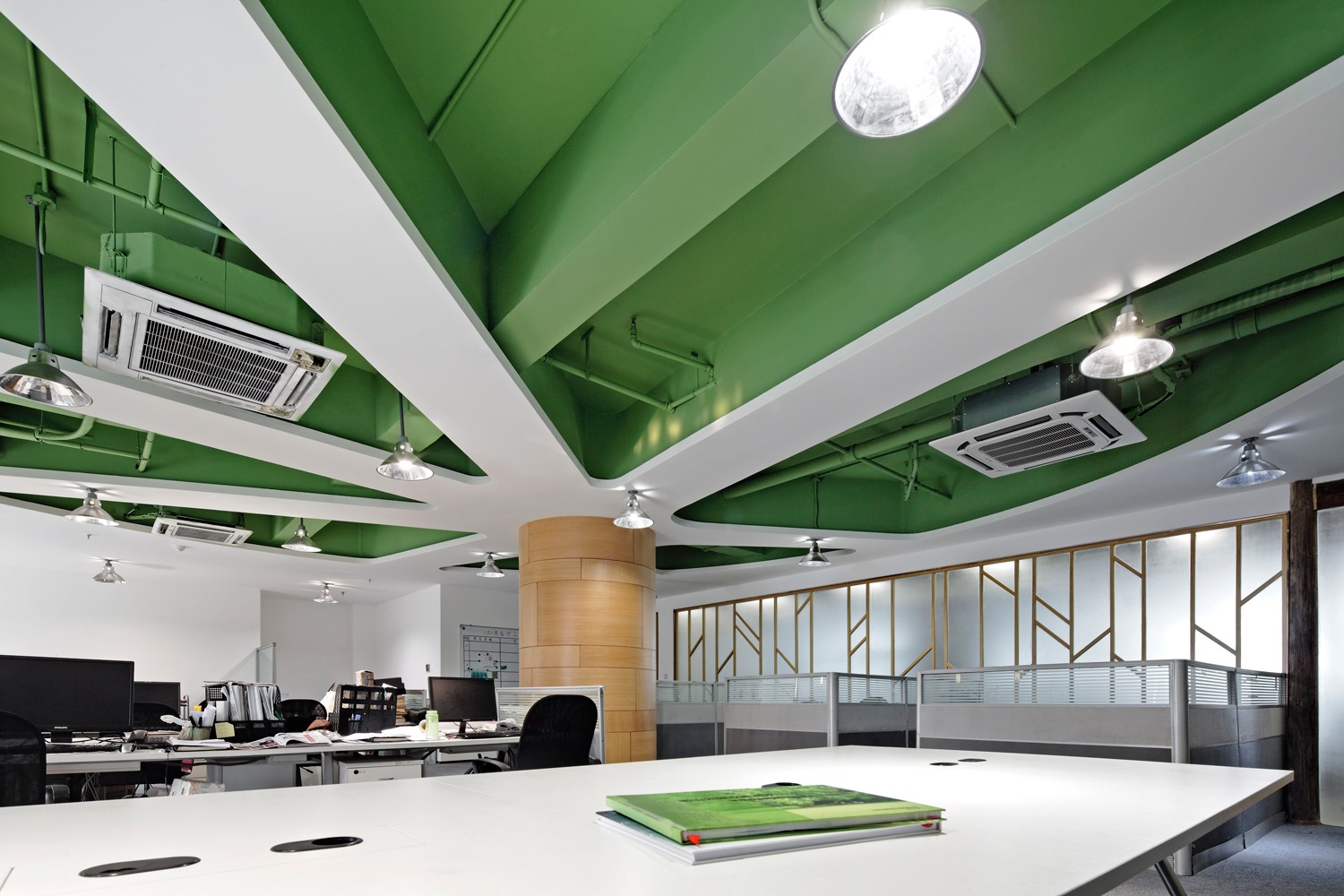

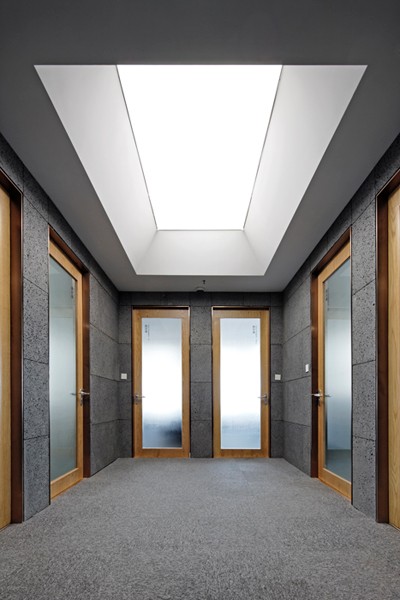

     楼层的每层平面为长方形,两端是电梯和楼梯,因此适合中间布置交通走廊,两面靠窗布置办公空间,以使最好的光线得到最大限度利用。在东沃租下办公室前,几个楼层为前一家公司所用,留下了大量隔墙玻璃,业主提出必须利用,以节约装修成本。层中间走廊的采光,运用办公空间的玻璃墙自然是最好的选择。但是,由于拆旧拆下来的玻璃尺寸不尽相同,又是钢化过的,无法切割,如何利用是个难题!为此,设计师将这些玻璃用每层不同图案的分格法进行处理,巧妙地把玻璃不同尺寸的接缝掩盖了起来。分格图案每层也不同,最终问题反而变成了一道风景。中间走廊由于很长,每天的来来回回难免单调,为此,分别在不同部位设计了洽谈区、茶水间或是卫生间等的通道,有方盒子、月洞门等形状,使走廊空间有了变化。十三层大厅遗留的原风格元素很混乱,业主提出须简化,但要保留原有楼梯的结构,以减少施工成本和时间。于是,设计师采用加上去的“减法”,把原来杂乱的大量装饰元素“减”干净。每个楼层、部门的大小会议室共有十几个,因此,每个会议室在统一风格中使用了一些不同的材质,使之多了变化。作为东沃集团的原始和支柱产业,景观设计和景观建设公司位于九层。为了显示出这两个部门的工作特色,在入口安装了古建筑拆旧下来的木柱,韵味十足。其内部主要空间内各有一条大柱子,将大柱子装饰成了圆形,顶部做了树冠的造型,并粉刷了绿色乳胶漆,如同两棵大树,象征了对自然的热爱,显示出了景观特色。

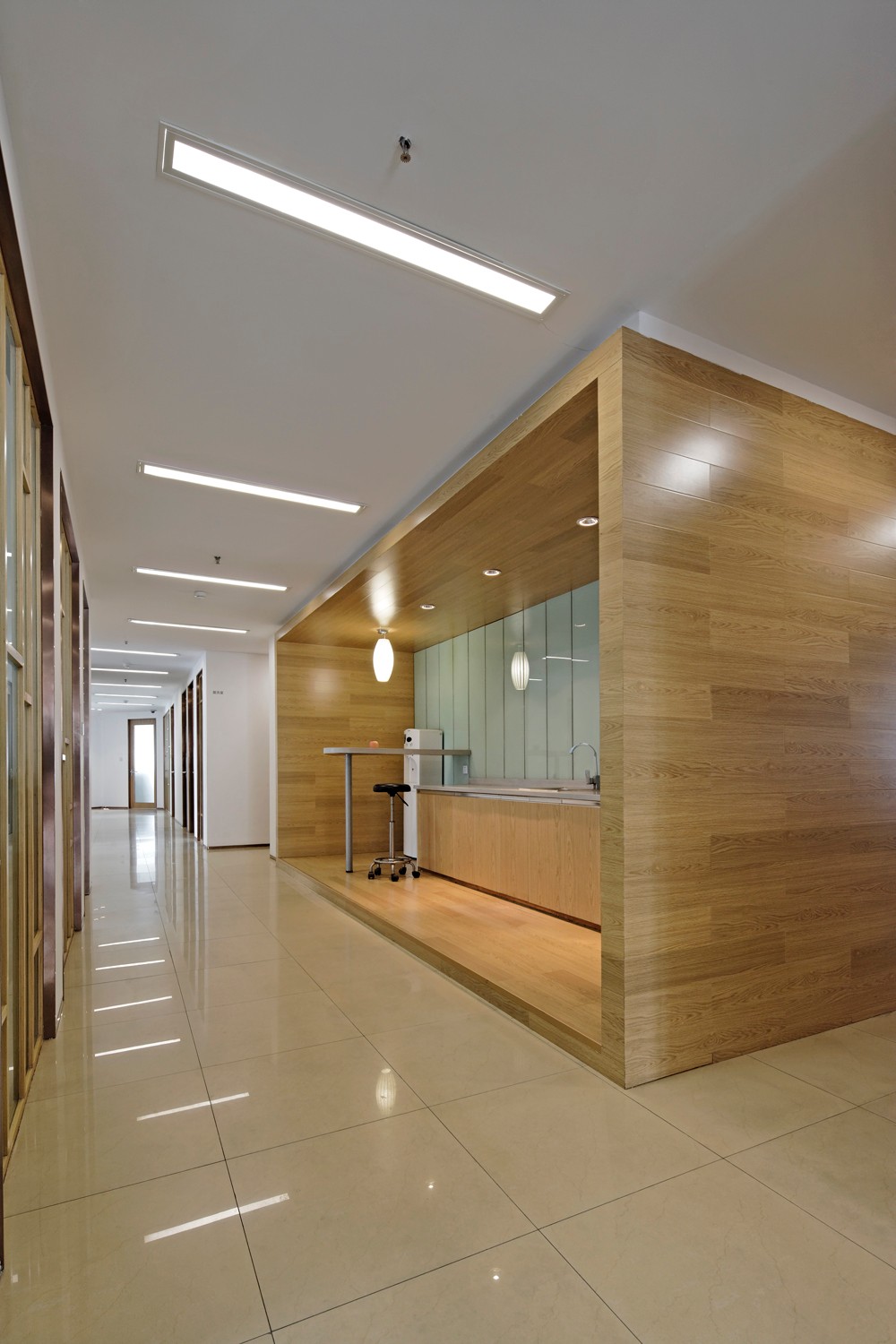

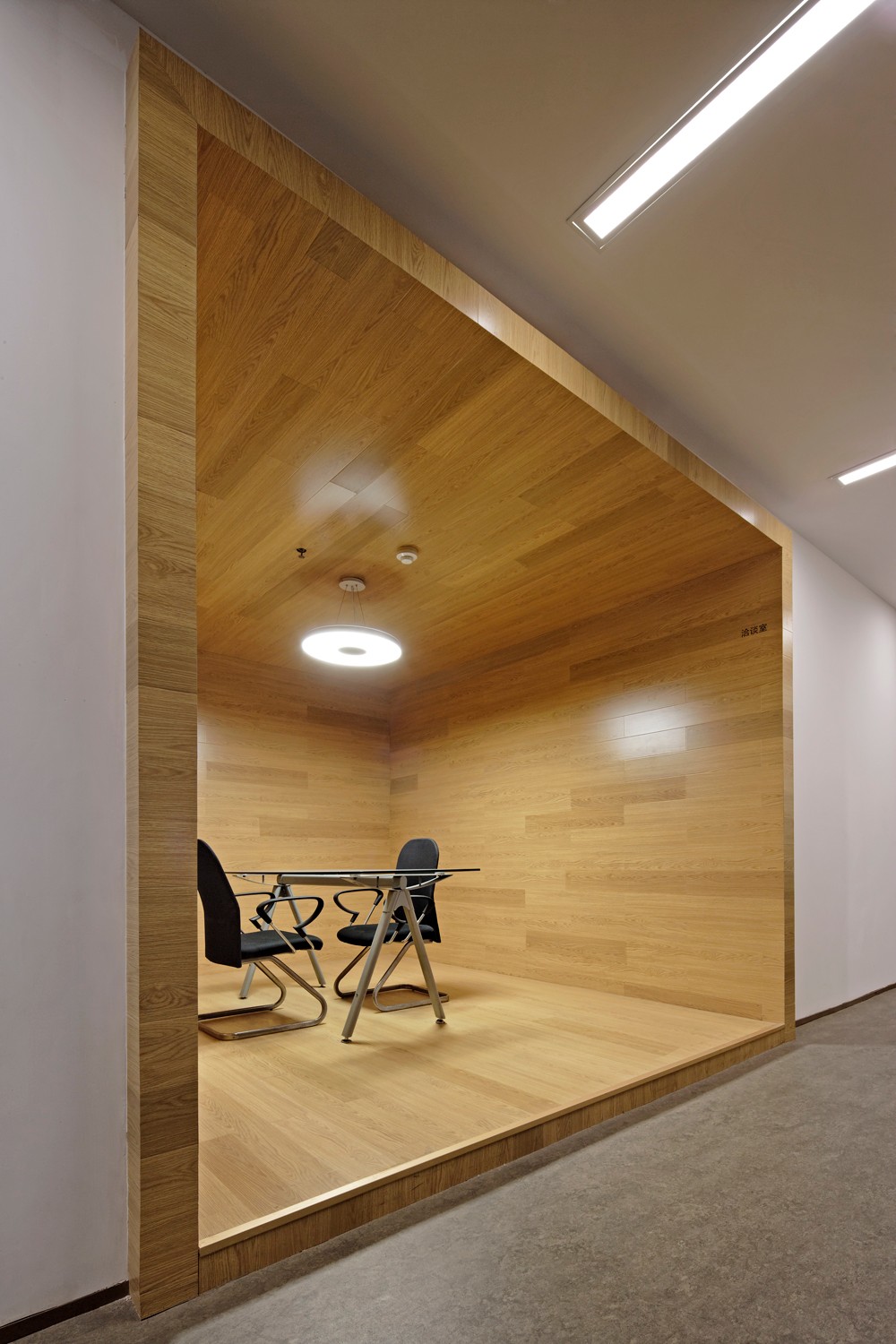

Each floor is rectangular, and elevators and stairs are located at both ends of floors. Therefore the middle of the floor is suitable for traffic corridor. Office space is close to two windows in order to make the best use of natural light. Several floors are used by a company before Dow Group rents it and leaves many glass partition walls. The owner asks us to make full use of it so as to save the cost of decoration.Glass walls in office space can transmit natural light to the intermediate corridor. However, due to different size of glasses which are dismantled from the big glass and tempered glasses which can not be cut, it is difficult to use it. Therefore, designers paint different pictures on these glasses in line with the cutting line of glasses. This method covers up the joint line when connecting different glasses skillfully. Pictures are diverse and finally, the problem is turned into a scenery. Due to the long middle corridor, it is boring when you walk on this corridor every day. Therefore, we respectively create a discussion area, tea room or bathroom and other channels in different parts of the corridor. The pattern just likes square box or moon gate. So the corridor space has changed. The original style of the hall in thirteen floor is confused. The owner wants to simplify it but to preserve the original structure of the staircase for reducing the construction cost and time. Therefore, designers use "subtraction" to reduce many decorative elements which are disordered. Each floor has more than ten meeting room with different sizes. Therefore, various materials are applied to each meeting room  under a unified style. So there are some changes. Landscape design and landscape construction company, as the starting and pillar industry of Dow group, are located at the ninth layer. In order to show the feature of these two departments, old wooden pillars which are dismantled from ancient building are installed in the entrance. This design has lasting appeal. The main internal space has big pillars and these pillars have round shape. The top of these pillars is shaped into tree crown, painted with green emulsion. These like two big trees and become the symbol of love for the nature, showing the landscape characteristics.

设计这般如此......最终实现了风格的“精”,丰富的“景”,大气的“境”。

The design......  finally achieve “concise” style, rich “landscape” and graceful “environment”.
